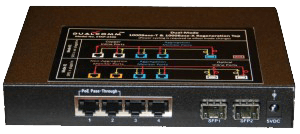

Dualcomm ETAP-2306 is a GbE Network Tap with multiple monitor ports which can be used with either a 10/100/1000Base-T copper link (copper mode) or a 1000Base-X fiber link (fiber mode).
In the copper mode, ETAP-2306 provides four aggregation monitor ports, each of which outputs a copy of aggregated inline traffic in both directions.
The copper mode of ETAP-2306 is compatible with Power-over-Ethernet (PoE), which is capable of passing PoE inline power between two copper inline ports. As such, a connected PoE powered device (e.g., a PoE IP phone) can still receive the inline power seamlessly from its PoE capable link partner such as a PoE switch.
In the fiber mode, ETAP-2306 provides two aggregation monitor ports and a pair of non-aggregation monitor ports. Each non-aggregation monitor port outputs a copy of inline traffic in only one direction. Using the pair of non-aggregation monitor ports is usually preferred for high data throughput situations to avoid possible packet loss due to port oversubscription.
ETAP-2306 uses the standard small form-factor pluggable (SFP) modules when ETAP-2306 operates in the fiber mode. ETAP-2306 itself does not include the SFP modules, which, however, are widely available on the market for multi-mode and single-mode fiber links. Copper SFP modules are also available for use with ETAP-2306.
ETAP-2306 automatically switches between the two operation modes by detecting the presence of SFP modules. No additional user configuration is needed.
ETAP-2306 can be conveniently powered by USB power from a USB host device such as a Laptop computer.
Prices
ETAP-2306 590.00 EURO (excl. VAT)
